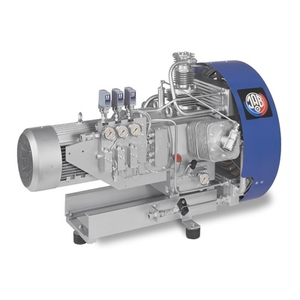

Description
A higher volumetric efficiency and alignment of the cylinders directly in the cooling-air flow are the pre-conditions for low condensation temperatures and therefor long service life of the valves. The generously dimensioned industrial components guarantee long inspection intervals and low maintenance costs. A special system for leakage testing of the whole machine during standstill (without running noises) simplifies the diagnosis during maintenance work.
Compressor:
- Type-tested safety-valves for all pressure stages
- High efficient cooling
- Microfilter at outlet
- Energy efficient IE3 motor, direct flanged
- Elastic coupling for smooth start
- Manometer for all pressure stages and oil pressure
- Oil-pressure-lubrication with oil-pressure-contorl
- Full automatic discharge
- Vibration-free assembly
- Electromagentic start discharge
Compressor unit:
- Compressor
- PLC Control
- Pressure sensor for end-pressure
- End-temperature-control
- Flexible hoses
- Ready mounted and wired on common base
Optional equipment:
- Pressure-switch at all pressure stages
- Temperatur-contorl of all pressure stages
- Compressor-heating
- Sound insulation hood
- Condensate tank for wall mounting
Technical data
| Application, medium | Stickstoff / Nitrogen / Azote |
| Max. operating pressure | 350 bar |
| Stages | 3 |
| Inlet pressure | 0,1 / 0,5 bar |
| Delivery quantity | 224 / 305 l/min |
| Driving power | 7,5 kW |
| Drive speed | 1500 rpm |
| Cylinder count | 3 |
| Operating temperature | 5 - 40 °C |
| Length | 800 mm |
| Width | 630 mm |
| Height | 610 mm |
| Weight | 184 kg |
| Outlet temperature | ca. 10 °C über Eingangstemperatur |
