MÁY NÉN KHÍ TĂNG ÁP HPC-BOOSTER PLUS 50

(1 đánh giá)

Mã sản phẩm : HPC-BOOSTER PLUS 50

Xuất xứ : HERTZ-GERMANY

Bảo hành : 1 Năm

MÁY NÉN KHÍ BOOSTER TĂNG ÁP (BOOSTER COMPRESSOR) - Model: HPC-BOOSTER PLUS 50 - Áp suất đầu vào Máy nén khí tăng áp Booster: 7 Bar, 10 bar và 13 bar - Lưu lượng ra 40 Bar từ: 9,7 m3/phút - 13,3 m3/phút - 17.01 m3/phút - Công suất: 35KW/50HP - Áp suất làm việc max: 40 Bar - Kiểu làm mát: Gió - Nguồn cấp: 380V/3Ph/50Hz or 60Hz - Ứng dụng cho ngành công nghiệp THỔI CHAI PET

Giá sản phẩm : Call: 0919-243-248

Chi tiết

MÁY NÉN KHÍ BOOSTER TĂNG ÁP (BOOSTER COMPRESSOR)
- Model: HPC-BOOSTER PLUS 50
- Áp suất đầu vào Máy nén khí tăng áp Booster: 7 Bar, 10 bar và 13 bar
- Lưu lượng ra 40 Bar từ: 9,7 m3/phút - 13,3 m3/phút - 17.01 m3/phút
- Công suất: 35KW/50HP
- Áp suất làm việc max: 40 Bar
- Kiểu làm mát: Gió
- Nguồn cấp: 380V/3Ph/50Hz or 60Hz
- Ứng dụng cho ngành công nghiệp THỔI CHAI PET

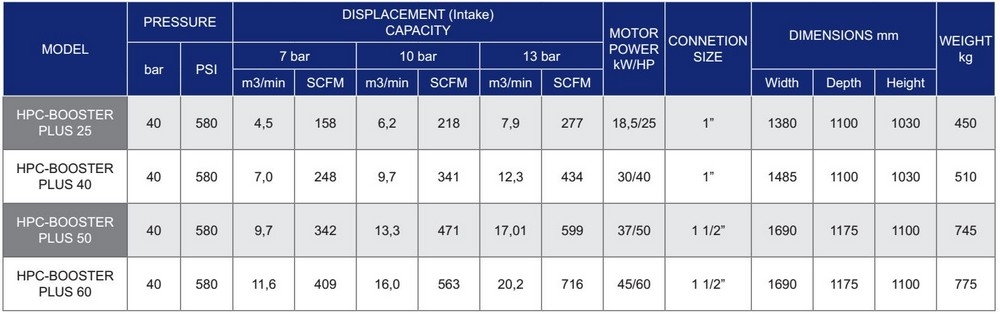

HPC-BOOSTER PLUS SERIE RECIPROCATING BOOSTER AIR COMPRESSORS

* Values are recorded in reference conditions which are 1 bar absolute air pressure, %0 relative humidity, 20°C inlet air temperature and use of Smartoil.

HERTZ KOMPRESSOREN reserves its rights to make changes in its products and specifications without prior notice.

A Booster takes air from compressed air line and increases the pressure for certain applications such as seal testing in pneumatic and hyraulic devices, certain actuating cylinders, presses, clamping fixtures and PET bottle production.

Usually the volume of air demanded at higher pressures of around 40 bar is relatively small so the booster is an economical means of supply and more efficient than to lift the pressure in the complete air main to this level. HERTZ boosters are delivered ready for use and include an air-cooled compressed air aftercooler as standard.

COMPRESSOR BLOCK

Heavy-duty type cast-iron crankcases contain oil level indicators on crankcase, blowdown valve and oil fill/drain plugs.
Cast-iron cylinders with cooling fins.
Dynamically balanced and precisely manufactured sphero cast crankshafts and counter weights.
Pistons casted from special aluminum alloy and sphero cast connecting rods.
Special design high speed concentric valves made from stainless steel for high.
Compression and oil retaining rings.

MAIN MOTOR AND DRIVE SYSTEM

In HPC-BOOSTER PLUS series, high efficiency IE3 class IP55 motors working with 400V/3 phase/50Hz power as standard.
Direct-drive system with flexible coupling.
Special loadless operation system.

COOLING & LUBRICATING SYSTEMS
Two-stage (one for oil cycle, one for air cycle) aluminum combi-cooler radiator.
Deep cooling fins on the cylinders and the air-flow directing canopy.
Directly coupled oil pump

ELECTRICAL SYSTEM

PLC based control and monitoring with digital display
Flexible operation with up to 100 user controlled parameters such as motor switching, inlet and outlet air pressure and temperature, minimum operating pres sure, minimum oil pressure and maximum operating temperature
Monitoring maintenance intervals with 5 different pre-defined timer structures
Reliable operation by using less numbers of mechanical control equipment like relays and contactors

OPTIONS
